╔══════ Spec ══════╗
★English Version★

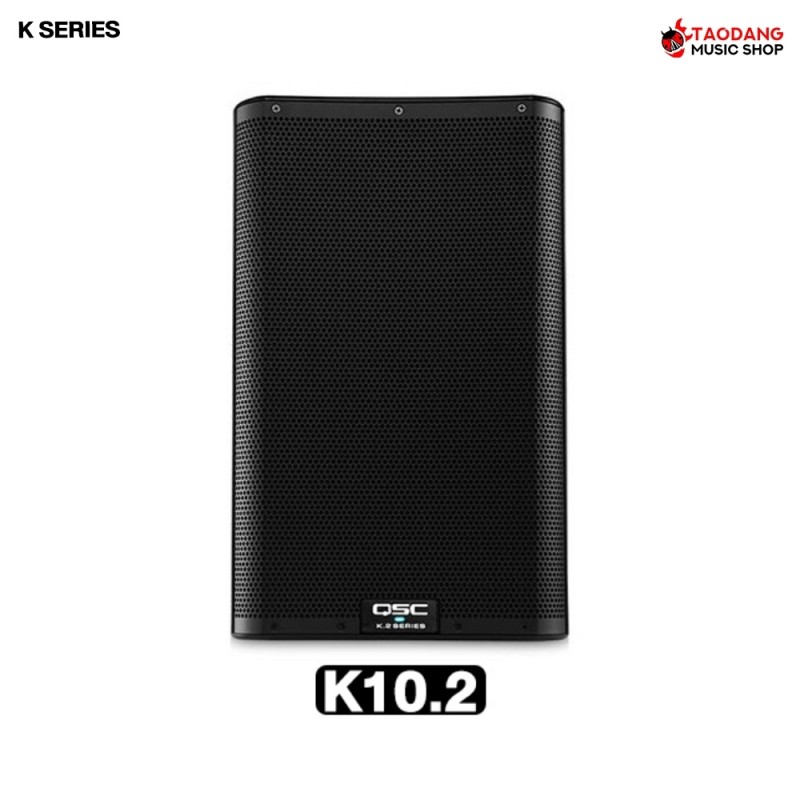

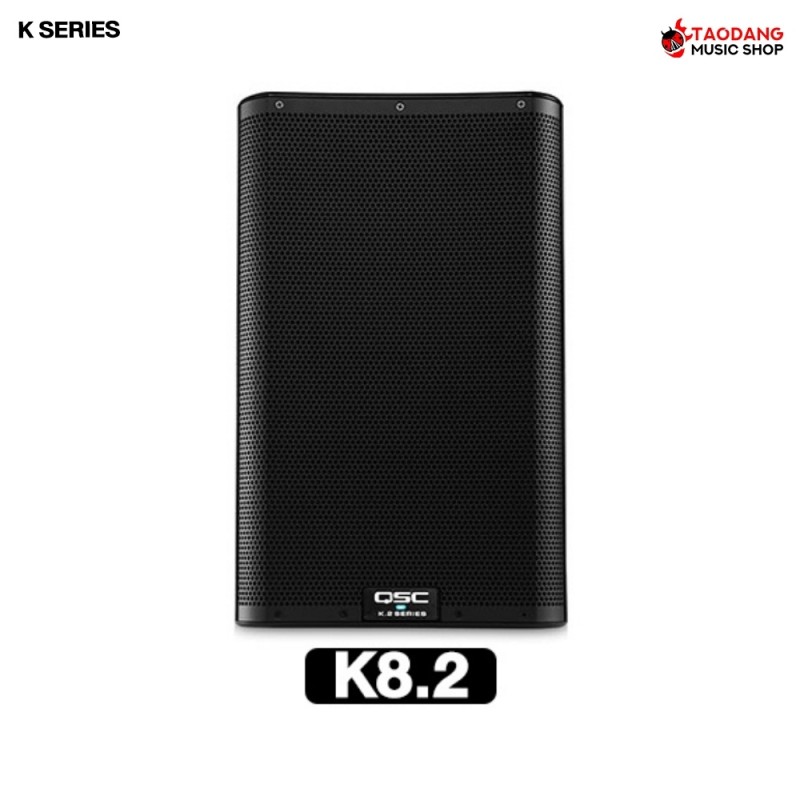

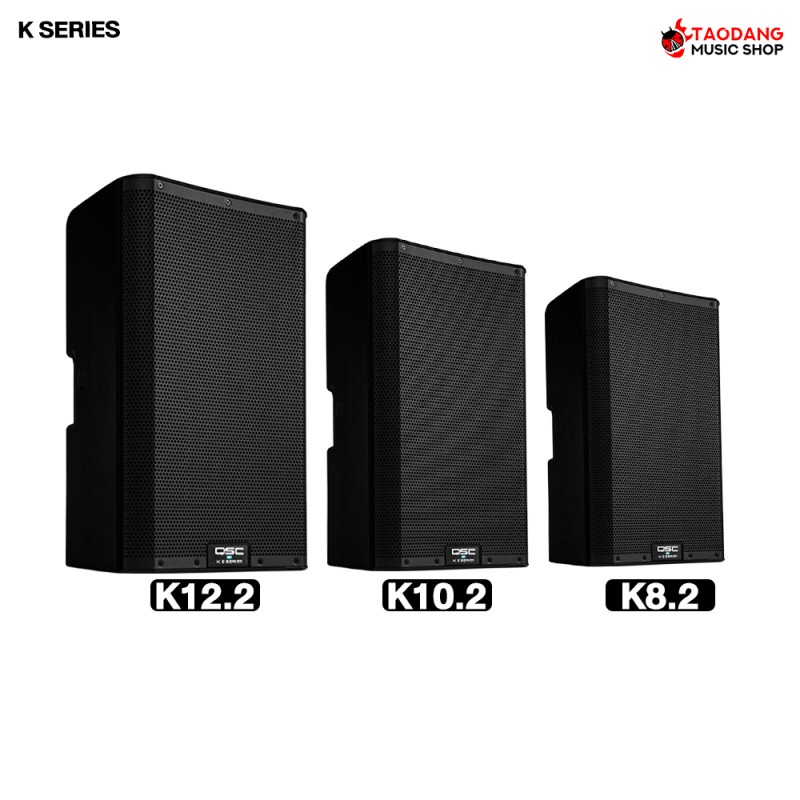

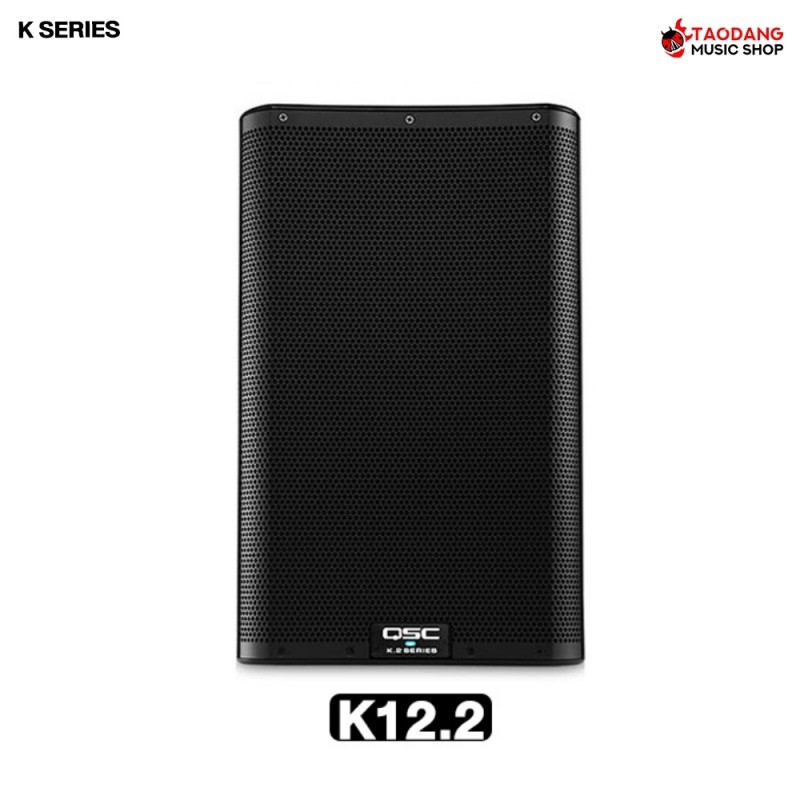

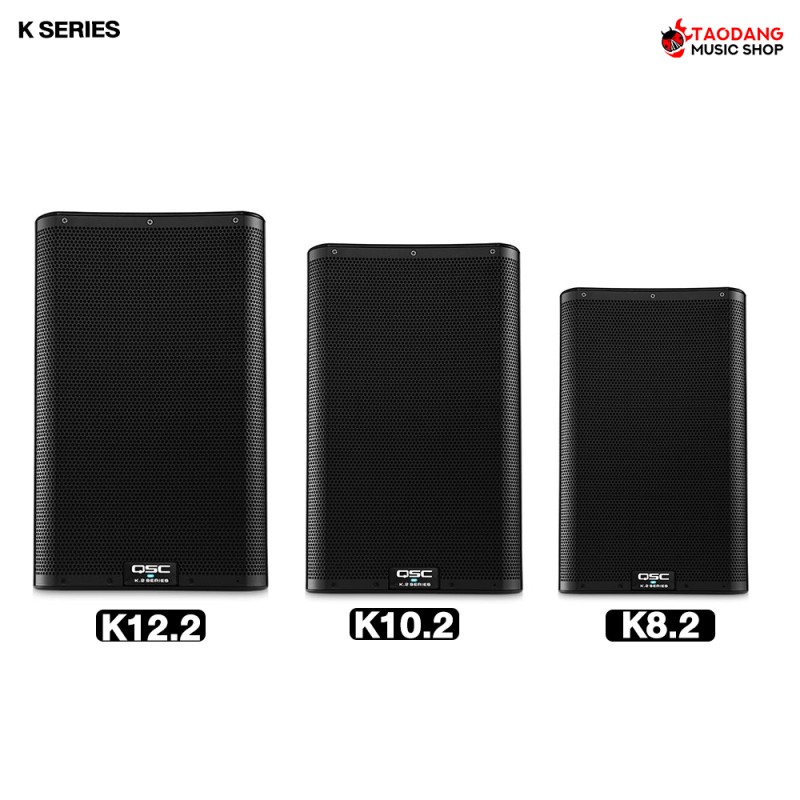

► Model : K8.2 / K10.2 / K12.2
► Brand : QSC

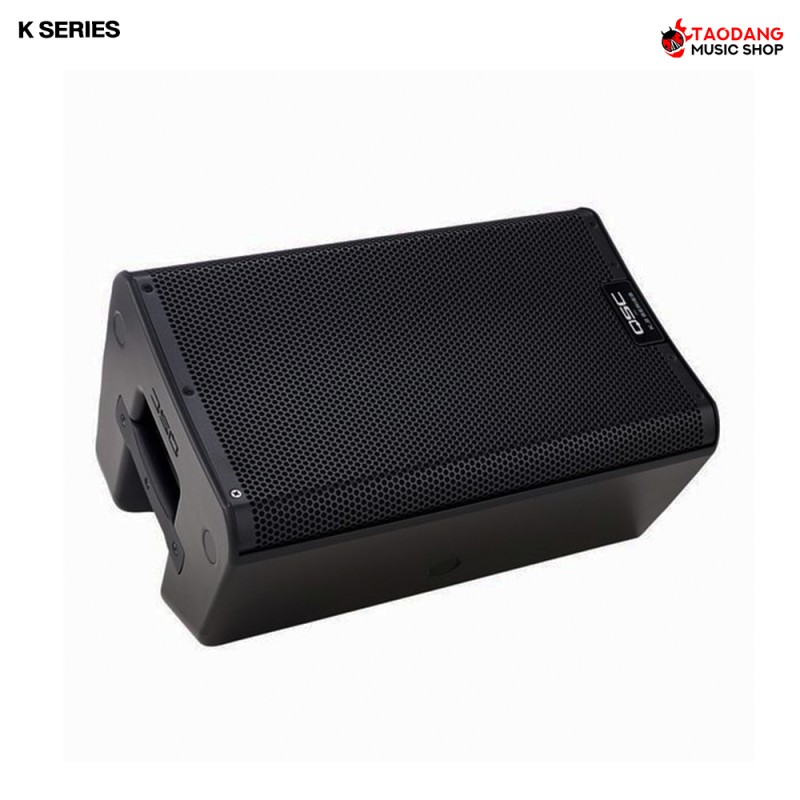

► Product Type : Active Loudspeaker
► Configuration : Multi-purpose, 2-way active loudspeaker
► LF Transducer :
- K8.2 : 203 mm (8 inch), cone
- K10.2 : 254 mm (10 inch), cone
- K12.2 : 305 mm (12 inch), cone
► HF Transducer : 35.6 mm (1.4 inch) titanium diaphragm compression driver (All models)
► Frequency Response (-6 dB) :
- K8.2 : 59 Hz - 20 kHz
- K10.2 : 56 Hz - 20 kHz
- K12.2 : 50 Hz - 20 kHz
► Frequency Range (-10 dB) :
- K8.2 : 55 Hz - 20 kHz
- K10.2 : 50 Hz - 20 kHz
- K12.2 : 45 Hz - 20 kHz
► Nominal Coverage Angle :
- K8.2 : 105° Axisymetric
- K10.2 : 90° Axisymetric
- K12.2 : 75° Axisymetric
► Maximum Rated SPL (Peak) :
- K8.2 : 128 dB
- K10.2 : 130 dB
- K12.2 : 132 dB
► Amplifier : Class D, Peak: 1800 W (LF), 225 W (HF) (All models)

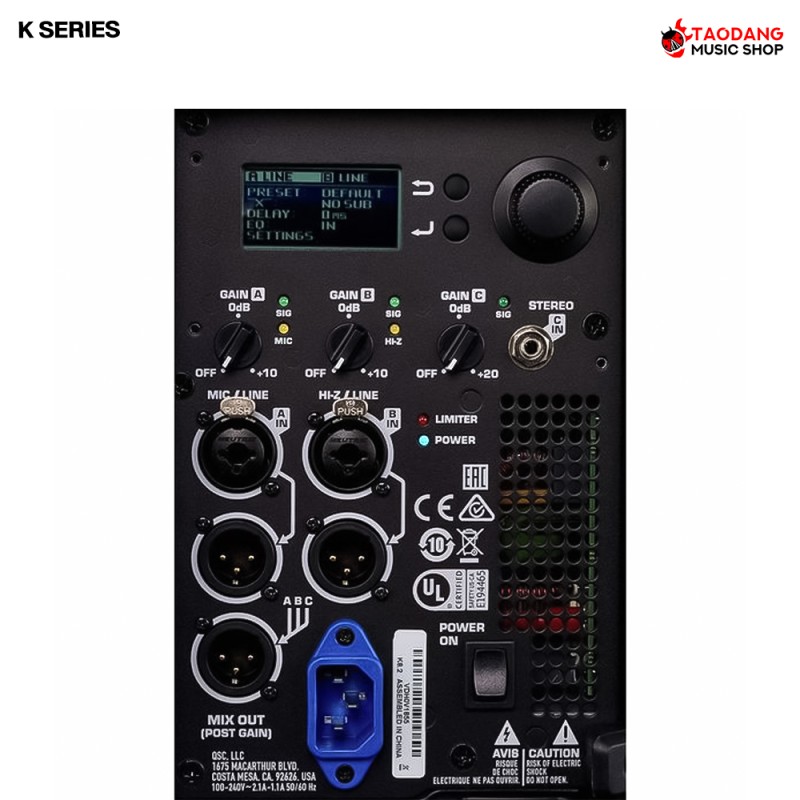

► Controls : Power, 3 x Level, Rotary encoder, 2 x selection buttons
► Indicators : Monochrome LCD Display (45 mm x 25.4 mm), 2 x Power LED (front and rear), 3 x Input Signal LED, Input A MIC selected LED, Input B HI-Z selected LED, Limiter active LED

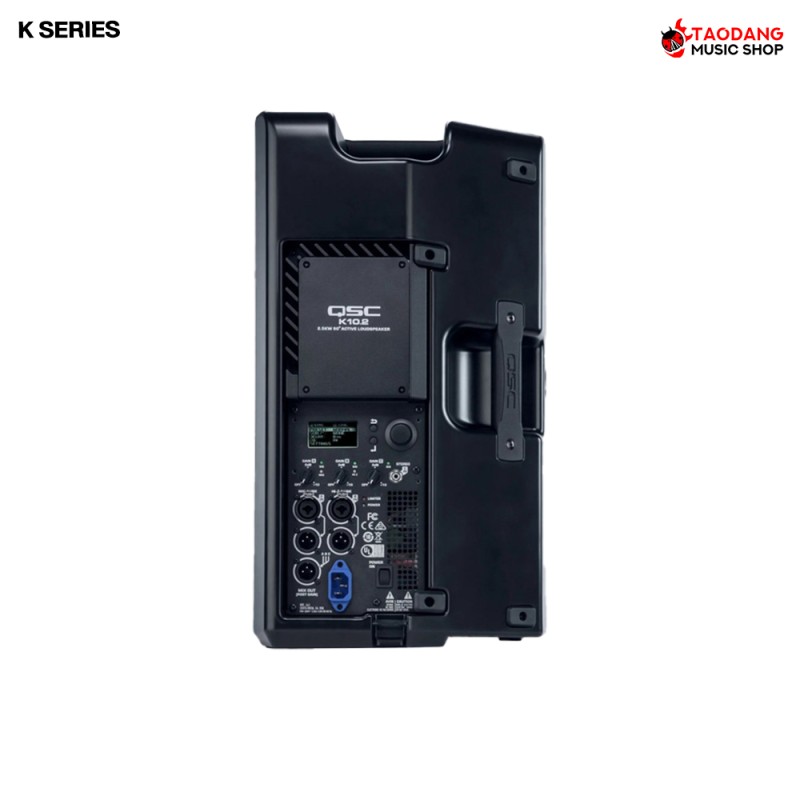

► Connectors :
2 x locking XLR/F 1/4"" combo (Mic/Line Input and Hi-Z/Line Input)
1 x 3.5 mm TRS (Stereo Input)
2 x XLR/M (Loop-thru Output)
1 x XLR/M (Mix Output)
1 x locking IEC power connector
► AC Power Input : Universal power supply 100 – 240 VAC, 50 – 60 Hz
► Enclosure Material : Impact Resistant ABS
► Grille : 18 Gauge powered coated steel, internal cloth lining
► Dimensions (H x W x D) :
- K8.2 : 449 x 280 x 269 mm / 17.7 x 11 x 10.6 in.
- K10.2 : 519 x 320 x 300 mm / 20.4 x 12.6 x 11.8 in.
- K12.2 : 602 x 356 x 350 mm / 23.7 x 14 x 13.8 in.
► Net Weight :
- K8.2 : 12.2 kg / 27 lbs.
- K10.2 : 14.5 kg / 32 lbs.
- K12.2 : 17.7 kg / 39 lbs.
► Color : Black"
